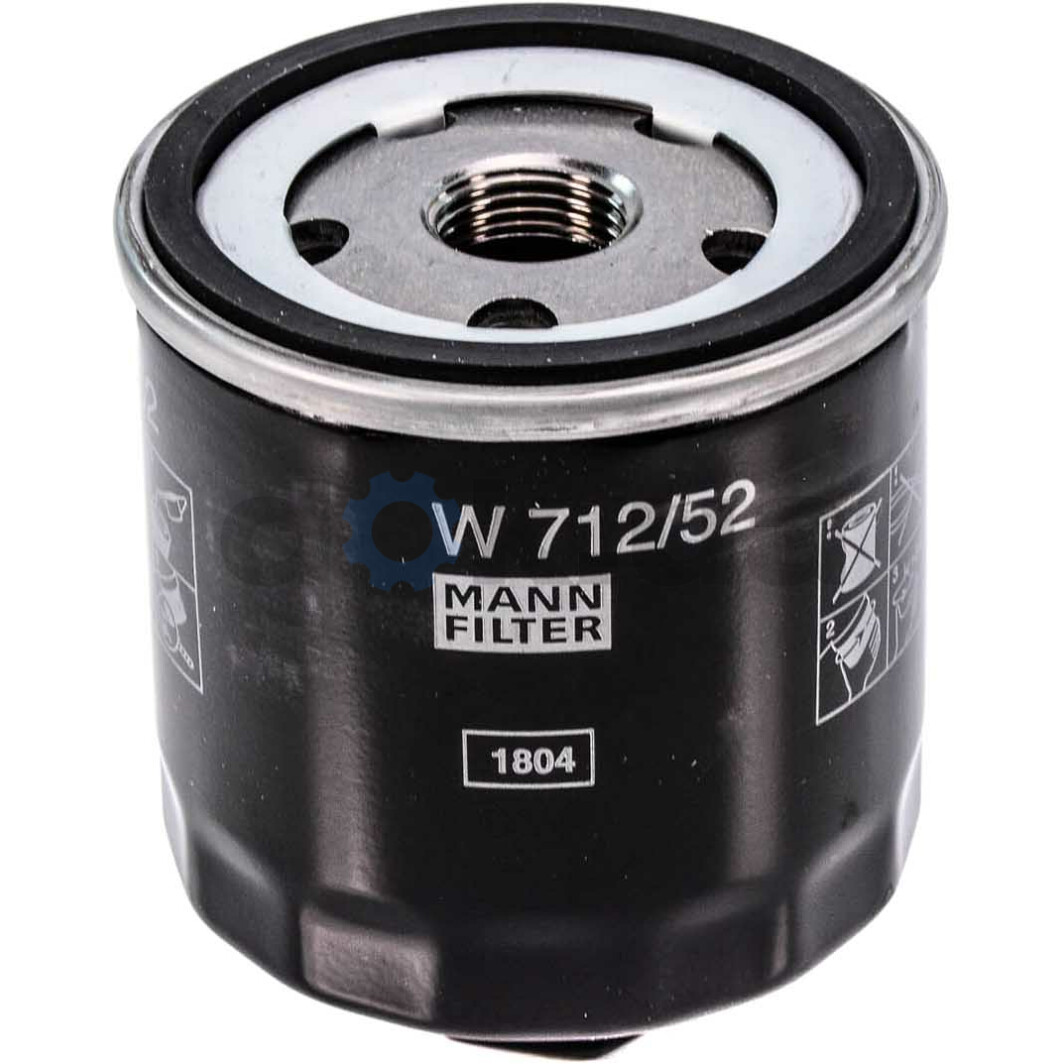

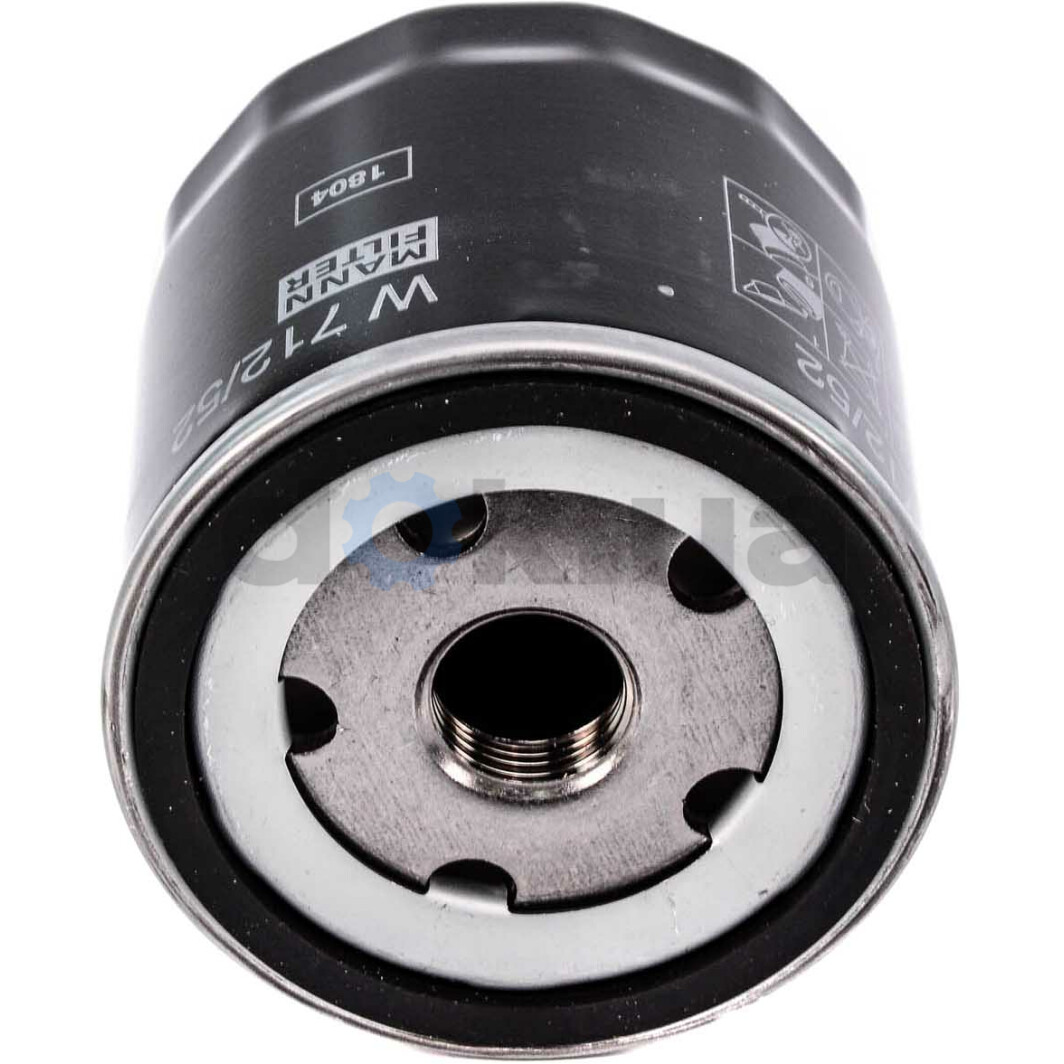

MANN‑Filter W 712/52 oil filter
15.00 €
MANN‑Filter W 712/52 oil filter is a premium spin-on filter with anti-drainback valve and fine media (2–9 µm), designed for VW, Audi, Škoda, and SEAT engines. OE fitment and reliable protection under all conditions.
Description
Premium Filtration with OE Precision
The MANN‑Filter W 712/52 is a high-performance spin-on oil filter featuring a 3/4‑16 UNF thread and robust anti-drainback valve, ensuring uninterrupted oil supply during cold starts and shutdowns ([turn0search0][turn0search10]).
Compact Fit for VW, Audi, Škoda & SEAT Engines
With dimensions of 76 mm outer diameter, 92 mm height, and inner seal diameters 62–71 mm, it’s ideal for a wide range of VAG vehicles (VW Golf/Jetta/Passat, Audi A3/A4/TT, Škoda Octavia, SEAT Leon) using OEM numbers 030 115 561 AB/AA/AD etc ([turn0search0][turn0search10]).
Advanced Media for Superior Cleanliness
It contains premium filter media (resin-impregnated cellulose and synthetic fibers) that effectively traps particles down to 2–9 µm. A bypass valve opens at 2.5 bar, maintaining flow during heavy oil contamination or thick oil ([turn0search0][turn0search10]).
Main Features:
- Thread: 3/4‑16 UNF spin-on with anti-drainback valve
- Dimensions: Ø76 mm × 92 mm height; inner seals 62–71 mm
- Filtration rating: 2–9 µm for optimal engine protection
- Bypass valve activation at ~2.5 bar
- Steel housing with anti-corrosion coating
- OE fit for Audi, VW, Škoda, SEAT with OEM cross-references
Technical Specifications:
| Type | Spin-on oil filter with anti-drainback valve |
| Thread Size | 3/4‑16 UNF |
| Outer Diameter (A) | 76 mm |
| Height (H) | 92 mm |
| Inner Seal B | 62 mm |
| Inner Seal C | 71 mm |
| Filtration Rating | 2–9 µm |
| Bypass Valve Pressure | ≈ 2.5 bar |
| Cross‑References | VW/AUDI 030 115 561 AA/AB/AD/F/P/K, etc. |
